1. Telescopic Wind Turbine Towers For Floating Wind Turbines

Floating Telescopic Wind Turbine Towers:

• allow  nacelles, rotors and blades to be installed near shore on a floater using low-cost, readily available cranes.
• allows nacelles and rotors to be  low increases vessel stability, reduces waiting on weather, risk and CAPEX.
• allows tower, nacelle and rotor  to be raised offshore without a crane significantly reducing CAPEX, waiting on weather and risk.
• allow

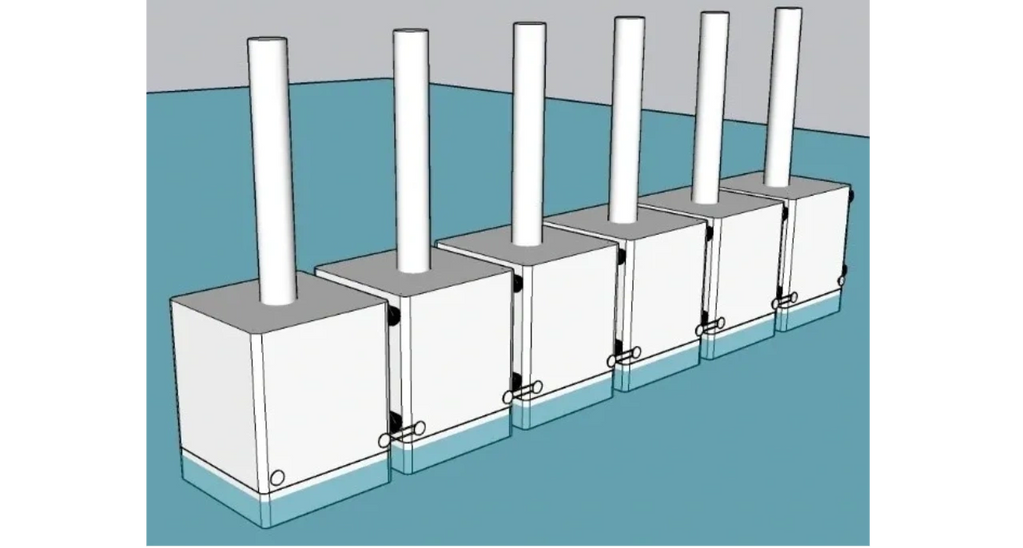

Tandem Tow of Multiple Hull, Counterweight and Telescopic Tower Units

• 6 Spars are shown tied together for a tandem tow with hulls,  counterweight support columns and counterweights deballasted.
• What you cannot see are the telescopic wind turbine tower sections inside the counterweight support columns.
• When the counterweights and the counterweight support columns have been lowered and ballasted, nace

The 4-sided flat plate spar hull on the right has its counterweight deballasted and secured to the bottom of the hull.

The counterweight support column is deballasted and Yokohama type fenders have been secured to the hull  for a tandem tow.

The counterweight support columns extends above the top of hull with the telescopic wind turbine column sections inside.

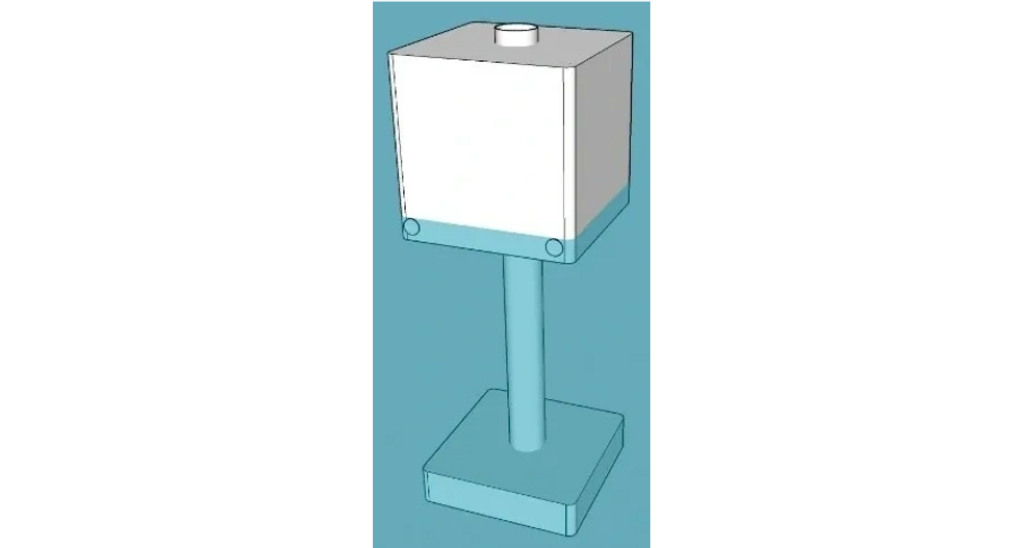

Hull Counterweight At Operational Draft

Tower sections can be installed inside the counterweight support column with nacelles and rotors installed on the top section by a conventional crane prior to transport.

MEC wind turbine tower elevators can optionally be used to install the nacelle and rotor, near shore or offshore.

Conventional non-telescopic wind turbine towers can also be attached to the to

4-sided flat plate spar hulls and counterweights can also be used to support floating wind turbines.

4-sided hulls allow compact transport as tandem tows and on heavy lift vessels.

Low cost pipe quarter sections can be welded to the corners providing improved fatigue lives and improved hydrodynamics.

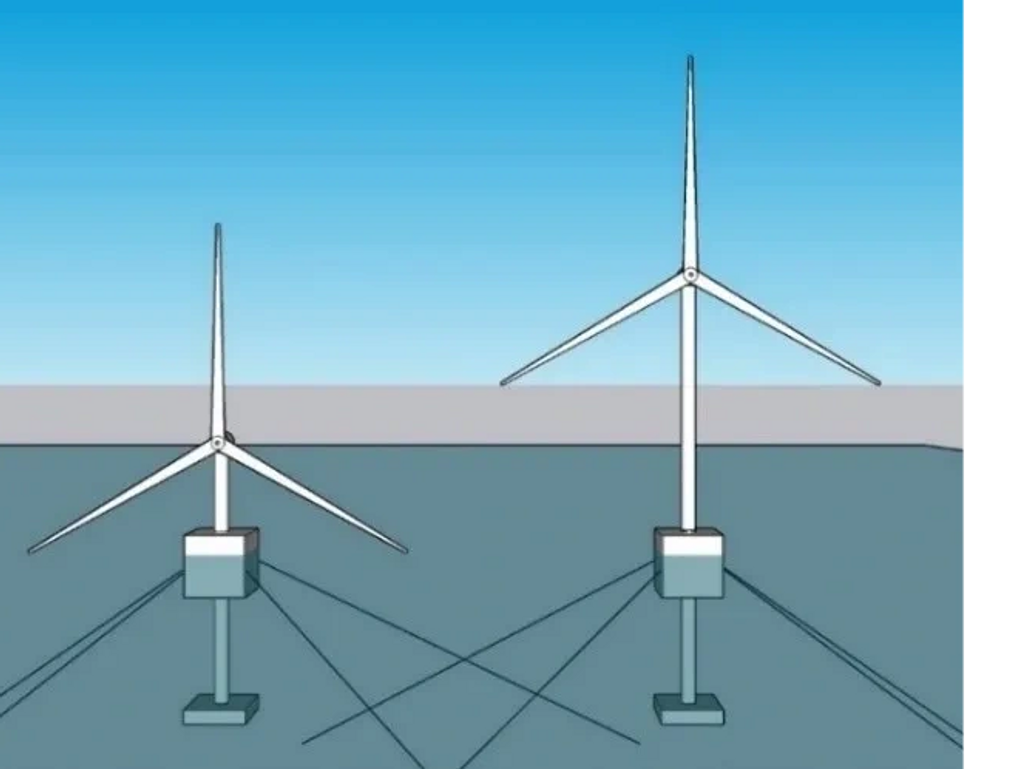

Floating telescopic wind turbine vessels can be towed to site with their nacelle and rotor low.

When the vessel is at site ballasted and moored, the telescopic tower can be raised and locked without the need for a crane saving significant CAPEX.

Telescopic wind turbine towers can later be unlocked and lowered for major maintenance, major storms, transport, etc. significantly reducing risk, downtim
